B125 Strength for Repair Points

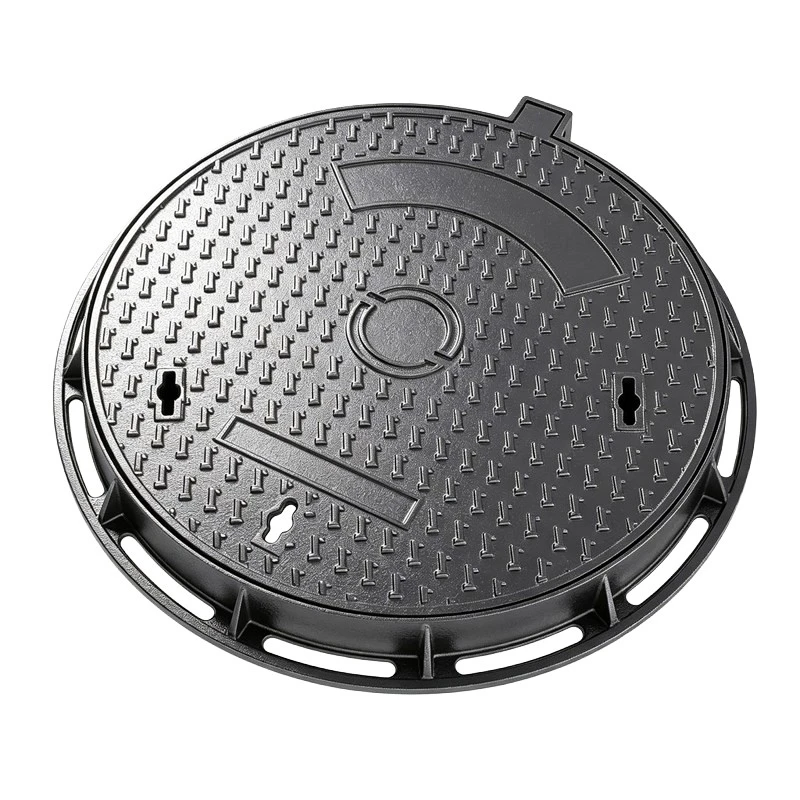

Sidewalk repair points may be opened and closed many times a year. A durable cover can reduce the need for frequent replacement. These Ductile Iron Access Covers are made for this type of application. They have a B125 load rating, which suits sidewalks and areas with light vehicle traffic. Ductile iron provides a strong body, while asphalt paint is applied to the surface. The standard repair size also makes the covers easy to replace.
A Standard Size That Fits Most Pits

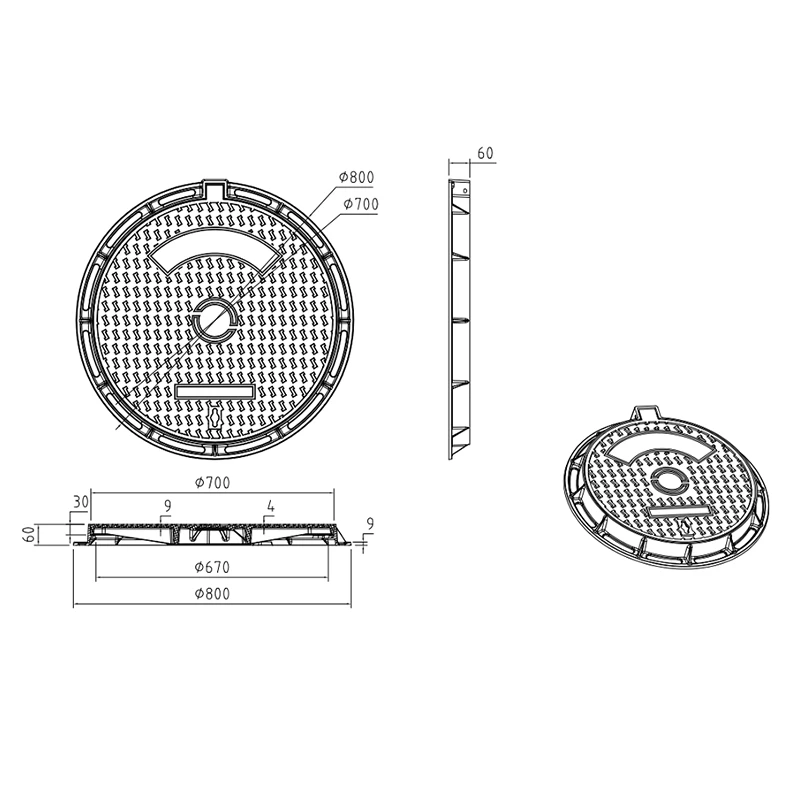

The clear opening is φ670 mm. The cover measures φ700 mm, and the frame measures φ800 mm. The frame height is 60 mm, and the cover thickness is 30 mm. These dimensions suit many repair pits on city sidewalks. A project logo can be printed on the cover. Buyers looking for a standard repair cover can use this size for sidewalk repair points.
Numbers You Can Check
|
Item |
Details |
|
Load rating |
B125 |
|
Material |
Ductile iron; asphalt paint |
|
Clear opening |
φ670 mm |
|
Cover |
φ700 mm |
|
Frame |
φ800 mm, frame height 60 mm; cover thickness 30 mm |
|
Custom |
Custom logo |
|
Use |
Sidewalks, non-motor vehicle lane repair points |
|
Features |
B125 load rating for sidewalk and light vehicle use; standard repair size; strong ductile iron construction; project logo can be printed |
Payment and Custom Work
Payment terms for custom products can be discussed according to your requirements. We can work with your finance team to find a payment plan that fits the order. The minimum order quantity is 100 sets. A sample can be sent before mass production. Sample lead time ranges from one week to one month. A warranty is provided for this product, with the warranty period specified in the contract.
Surface Work Inside Our Factory
A shot blasting machine is used in our factory to clean the cover and frame. Both parts go through the machine to remove oxide scale and surface dirt. Asphalt paint is then sprayed onto the surfaces. This process provides an even surface and improves rust protection. Our team checks the paint surface of each batch of covers and frames. They also check the logo on each batch.
Questions Buyers Often Ask
Q: How does payment work for custom orders?
A: Payment terms can be discussed. We can work with your finance team's requirements.
Q: What load rating do these covers have?
A: They have a B125 load rating.
Q: Can my logo go on the cover?
A: Yes. A project logo can be printed on the cover.
Q: How long does a sample take?
A: Sample lead time is one week to one month.
Reach out if these Ductile Iron Access Covers fit your project. A salesperson and a back-office worker will handle your case directly. We can help you select the appropriate model and manage purchasing risks.
