D400 Strength for Main Roads

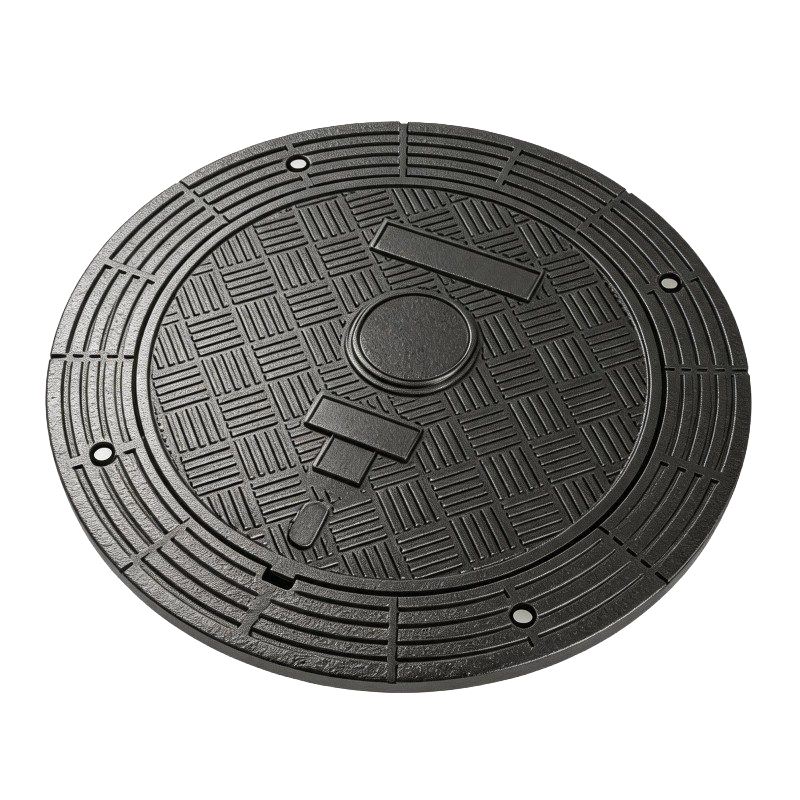

Main roads carry heavy trucks throughout the day. The D400 Ductile Iron Covers are made for these applications. They have a D400 load rating. Ductile iron forms the main body, and asphalt paint coats the surface. They are suitable for main roads with heavy traffic.
Wide Opening, Thick Frame

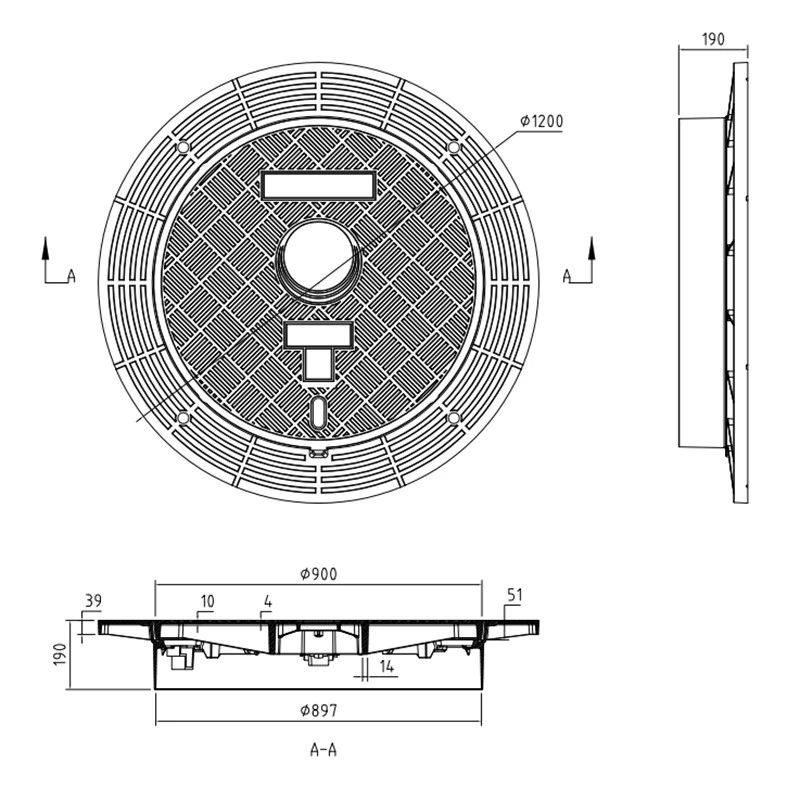

These D400 ductile iron covers have a wide φ897 mm clear opening. The cover diameter is φ900 mm, and the frame diameter is φ1200 mm. The frame height is 190 mm, and the cover edge thickness is 39 mm. The heavy frame provides good impact resistance for road applications. Ductile iron provides high strength and wear resistance. These covers are suitable for main roads with heavy traffic. Custom logos are available. Buyers looking for a wide-opening D400 cover can select this model.
Numbers You Can Check
Every key figure is listed in the table below. Use these specifications to select the right model.
|
Item |
Details |
|
Load rating |
D400 |
|
Material |
Ductile iron; asphalt paint |
|
Clear opening |
φ897 mm |
|
Cover |
φ900 mm |
|
Frame |
φ1200 mm, frame height 190 mm; cover edge thickness 39 mm |
|
Custom |
Custom logo |
|
Use |
City vehicle roads |
|
Features |
Wide D400 heavy-load design; heavy frame with good road impact resistance; ductile iron with high wear resistance; suitable for main roads with heavy traffic |
Custom Work We Accept
Your technical drawing can be used for customized production, and your prototype can also be used as a production reference. The minimum order quantity is 100 sets. A sample can be sent before mass production. Sample lead time ranges from one week to one month, depending on the customization requirements. A warranty is provided for this product, with the warranty period specified in the contract. Our standard payment terms are 30% down payment and 70% balance. The specific payment method can be discussed according to the order.
How We Hold Quality
A heat treatment system is located inside our factory to improve the strength and stability of the metal structure. Heating temperature, holding time, and cooling speed are controlled during the process. These steps help maintain the required nodularity rate and impact resistance. Workers check the nodularity rate, tensile strength, and elongation rate of each batch. These inspections help ensure that the covers meet the required heavy-load performance.
Questions Buyers Often Ask
Q: What are the standard payment terms?
A: 30% down payment and 70% balance. The specific payment method can be discussed.
Q: How wide is the clear opening?
A: The clear opening is φ897 mm.
Q: Does the cover provide good road impact resistance?
A: Yes. The heavy frame provides good impact resistance for road applications.
Q: Can a sample be sent before I order?
A: Yes. A sample can be sent before mass production.
If these D400 Ductile Iron Covers fit your project, contact us. A salesperson and a back-office worker will communicate with you directly. We can help you select the appropriate model and manage purchasing risks.
