Built for Power Project Approval

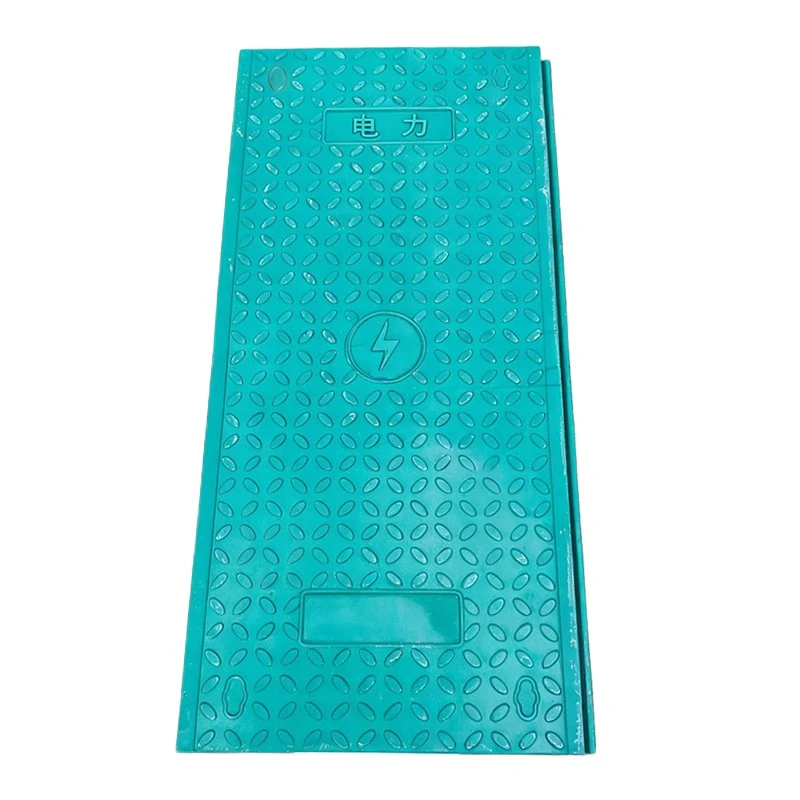

Power projects require covers that meet inspection and acceptance requirements. This Electrical Ditch Cover is designed for these applications. It has a 2 kN load rating and a body made of fiberglass and resin. The size is 1000×500×50 mm. Power and telecommunications electric ditches are the main applications, with insulation performance as a key consideration.
Insulated and Safe
The composite body is non-conductive and non-magnetic. This helps provide an insulated cover for workers around electric ditches. Its lightweight construction makes it easy to handle. This model does not include a hinge. Custom logos and colors are available upon request. It is designed to meet the insulation requirements of power project applications.
Specifications at a Glance
|
Item |
Details |
|
Load Rating |
2 kN |
|
Material |
Fiberglass and resin |
|

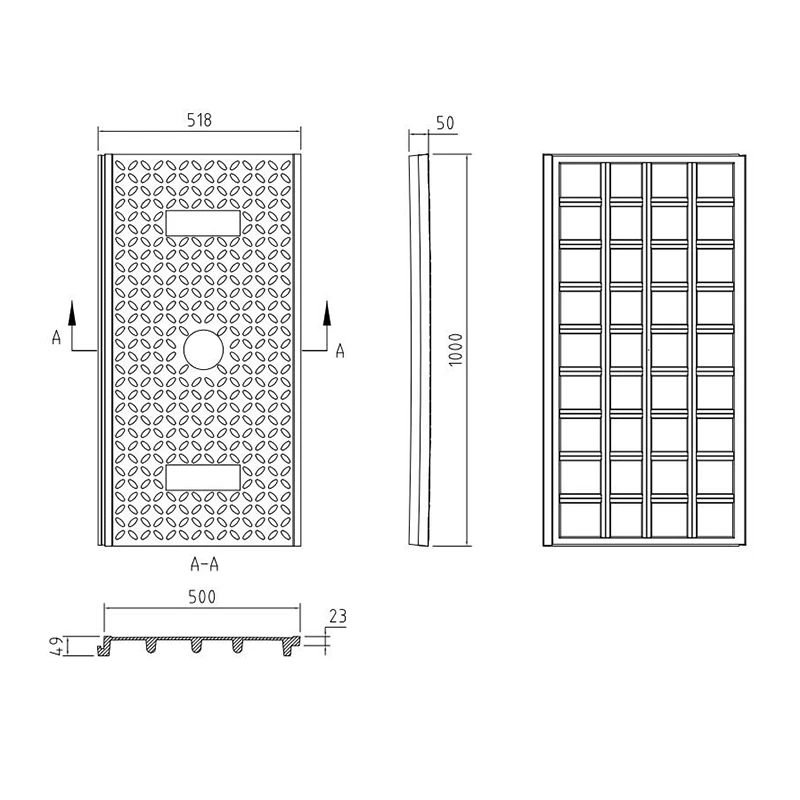

Size |
1000×500×50 mm |
|
Hinge |
No |
|
Customization |
Custom logo and color available |
|
Applications |
Power and telecommunications electric ditches |
|
Features |
Insulation-focused design; suitable for electric ditches; lightweight; non-magnetic; non-conductive; safe and reliable |
Damage Rules and Custom Work
If goods arrive damaged, we assess the situation based on the number of damaged units. Damage during transportation or other shipping-related issues may be among the possible causes. The minimum order quantity is 100 sets. Samples can be provided before mass production, with a sample lead time of one week to one month. A warranty is included, and the warranty period is specified in the contract.
Insulation Tests Inside Our Factory
Our factory has a dedicated area for insulation testing. During production, our team tests insulation resistance, voltage withstand strength, and surface resistance. These tests help verify the insulation performance of the Electrical Ditch Cover. Our team also checks the material, thickness, and color of each batch to maintain product consistency.
Questions Buyers Often Ask
Q: What happens if goods arrive damaged?
A: We assess the situation based on the number of damaged units. Damage during transportation or other shipping-related issues may be among the possible causes.
Q: Which insulation tests do you run?
A: We test insulation resistance, voltage withstand strength, and surface resistance.
Q: Does the cover conduct electricity?
A: No. The composite body is designed to be non-conductive and non-magnetic.
Q: What is the minimum order quantity?
A: The minimum order quantity is 100 sets.
If this product meets your project requirements, please contact us for more information. A dedicated sales representative and back-office staff member will handle your inquiry. We can help you select a suitable model and manage purchasing risks throughout the process.
