Big Drain for Main Roads

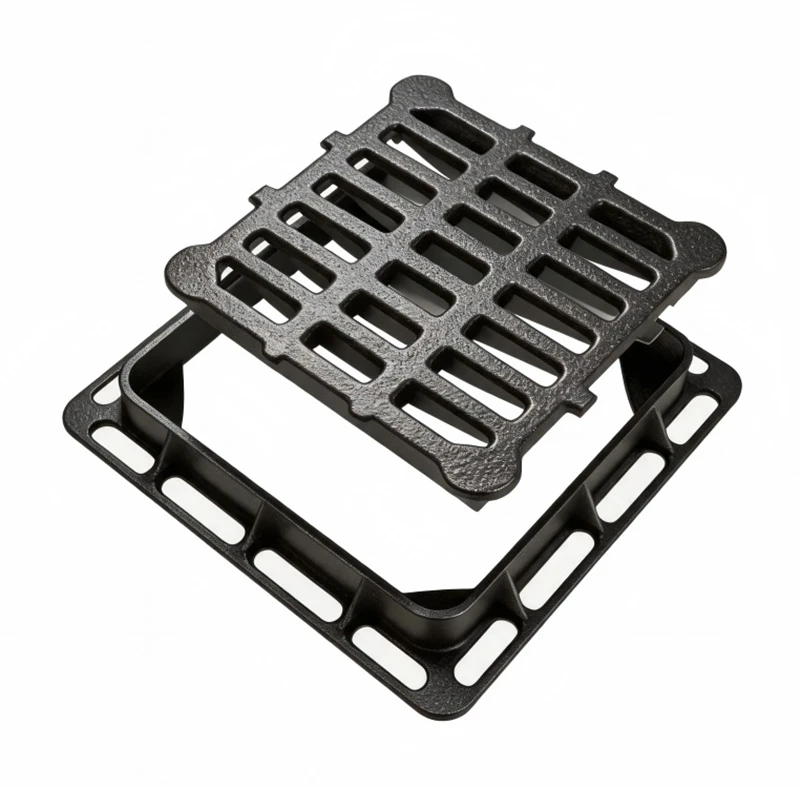

Main roads may need to handle more rainwater than side streets, so they require drainage covers with larger openings. These Cast Iron Gully Covers are designed for this application. The clear opening measures 600×600 mm. Ductile iron provides a strong body, with an asphalt paint coating on the surface. The tall frame provides space for drainage and is suitable for vehicle road rainwater drainage.
Wide Opening, Tall Frame

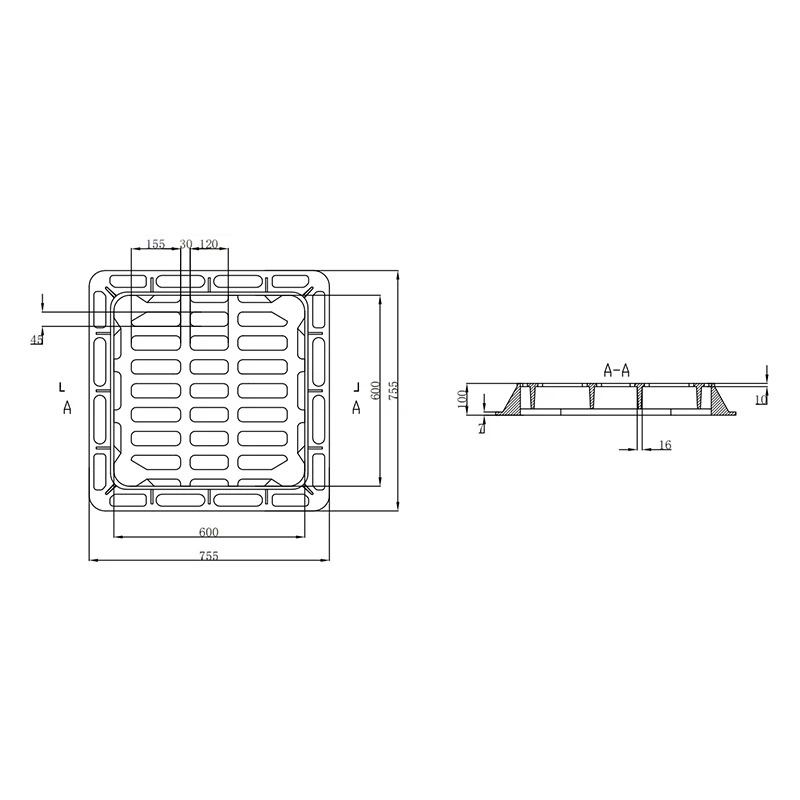

The frame outline measures 755×755 mm, and the frame height is 100 mm. This model does not include a locking system. Its D400 load rating provides heavy-load capacity for vehicle road applications. The tall frame and large opening are suitable for areas with high rainwater flow on main roads. Custom logos are available upon request.
Specifications at a Glance
|
Item |
Details |
|
Material |
Ductile iron with asphalt paint finish |
|
Clear Opening |
600×600 mm |
|
Frame Outline |
755×755 mm |
|
Frame Height |
100 mm |
|
Locking System |
No |
|
Load Rating |
D400 |
|
Customization |
Custom logo available |
|
Applications |
Vehicle road rainwater drainage |
|
Features |
Large square 600 mm clear opening; tall frame; D400 heavy-load rating; suitable for high rainwater flow on main roads |
Custom Lead Time and Custom Work
The custom product lead time is approximately one week. The exact schedule depends on the order quantity and other customization details. The minimum order quantity is 100 sets. Samples can be provided before mass production. A warranty is included, and the warranty period is specified in the contract.
Frame Control Inside Our Factory
Our factory has a dedicated casting area for large square frames. During production, our team controls the frame outline, height, and wall thickness. These process controls help maintain the required frame dimensions and load performance. The tall frame also provides the required drainage space for this application. Our team checks the frame flatness, frame holes, and frame thickness of each batch to maintain product consistency.
Questions Buyers Often Ask
Q: How long is the custom product lead time?
A: The custom product lead time is approximately one week. The exact schedule depends on the order quantity and other customization details.
Q: Does the frame provide sufficient drainage space?
A: Yes. The tall frame and large clear opening are designed for main road drainage applications with high rainwater flow.
Q: How tall is the frame?
A: The frame height is 100 mm.
Q: What is the minimum order quantity?
A: The minimum order quantity is 100 sets.
If these Cast Iron Gully Covers meet your project requirements, please contact us for more information. A dedicated sales representative and back-office staff member will handle your inquiry. We can help you select a suitable model and manage purchasing risks throughout the process.
